AStarTest.cpp File Reference

#include <boost/test/unit_test.hpp>
#include <cstring>
#include <fstream>
#include <cstdint>
#include <cmath>
#include "Server/Zone/Game/Map/Path/AStar.hpp"
#include "Server/Zone/Game/Map/Grid/Cell/Cell.hpp"
#include "Server/Zone/Game/Map/Grid/GridDefinitions.hpp"
#include "prontera.cpp"

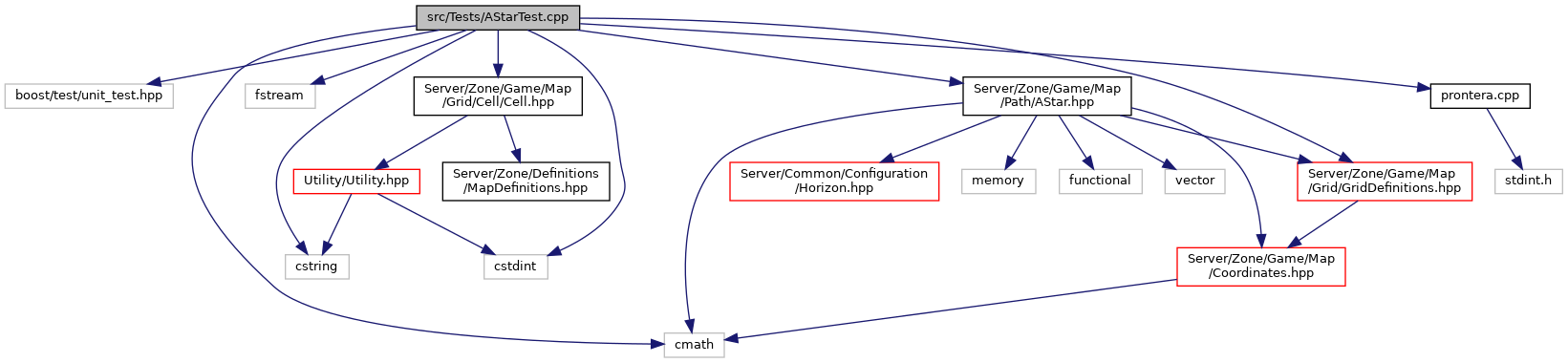

Include dependency graph for AStarTest.cpp:

Macros
#define	BOOST_TEST_MODULE   "AStarTest"
#define	MAP_WIDTH   268
#define	MAP_HEIGHT   300

Functions
bool	check_collision (int16_t x, int16_t y)
	BOOST_AUTO_TEST_CASE (AStarTest)

Variables
Cell	cell [MAP_WIDTH][MAP_HEIGHT]

Macro Definition Documentation

BOOST_TEST_MODULE

#define BOOST_TEST_MODULE   "AStarTest"

MAP_HEIGHT

#define MAP_HEIGHT   300

MAP_WIDTH

#define MAP_WIDTH   268

Function Documentation

BOOST_AUTO_TEST_CASE()

BOOST_AUTO_TEST_CASE

(

AStarTest

)

{
    Horizon::Zone::AStar::Generator astar({ MAP_WIDTH, MAP_HEIGHT }, &check_collision, true, &Horizon::Zone::AStar::Heuristic::manhattan);
    astar.setHeuristic(&AStar::Heuristic::manhattan);

    std::srand(std::time(nullptr));

    int total_time = 0;
    int idx = 0;
    // maps are stored from max-y,x down to 0,0
    // we store in cell[][] starting from 0,0 to max-y 0
    for (int y = MAP_HEIGHT - 1; y >= 0; y--) {
        for (int x = 0; x < MAP_WIDTH; ++x) {
            cell[x][y] = Cell(prontera[idx++]);
        }
    }

    std::vector<std::pair<MapCoords, MapCoords>> start_end;
    for (int i = 0; i < 10000; i++) {
        MapCoords start, end;

        do {
            start = MapCoords( rand() % MAP_WIDTH - 1, rand() % MAP_HEIGHT - 1 );
        } while(check_collision(start.x(), start.y()));

        std::vector<MapCoords> path;
        do {
            do {
                end = MapCoords( rand() % MAP_WIDTH - 1, rand() % MAP_HEIGHT - 1 );
            } while(check_collision(end.x(), end.y()));
        } while (!start.is_within_range(end, MAX_VIEW_RANGE) && ((path = astar.findPath(start, end)).size() == 0 || (path.at(0).x() != end.x() && path.at(0).y() != end.y())));

        start_end.push_back(std::make_pair(start, end));
        //std::cout << "Generated " << i << " start: " << start.x() << ", " << start.y() << " end: " << end.x() << ", " << end.y() << std::endl;
    }

    for (int i = 0; i < 10000; i++) {
        MapCoords start = start_end[i].first;
        MapCoords end = start_end[i].second;

        auto start_time = std::chrono::high_resolution_clock::now();
        auto path = astar.findPath(start, end);
        auto finish_time = std::chrono::high_resolution_clock::now();
        auto elapsed = std::chrono::duration_cast<std::chrono::microseconds>(finish_time - start_time);
        bool path_found = path.size() != 0;
        //printf("Manhattan: %lldus %d %s size: %lld (%d, %d) -> (%d, %d)\n", elapsed.count(), i, path_found ? "path found" : "path not found", path.size(), start.x(), start.y(), end.x(), end.y());
        total_time += elapsed.count();
        if (path.size() == 0)
            BOOST_FAIL("Path not found");
#ifdef PRINT_FILE
        std::ofstream mapfile;
        char filename[100];
        snprintf(filename, 100, "izlude-%d.txt", i);
        mapfile.open(filename);
        for (int y = MAP_HEIGHT - 1; y >= 0; --y) {
            for (int x = 0; x < MAP_WIDTH; ++x) {
                MapCoords coords = MapCoords(x, y);
                bool found = false;

                for (auto c : path) {
                    if (coords == c) {
                        if (start.x() == x && start.y() == y)
                            mapfile << "@ (" << x << ", " << y << ")";
                        else if (end.x() == x && end.y() == y)
                            mapfile << "T (" << x << ", " << y << ")";
                        else if (c.x() == x && c.y() == y)
                            mapfile << "^";
                        found = true;
                    }
                }

                if (!found) {
                    if (start.x() == x && start.y() == y)
                        mapfile << "@ (" << x << ", " << y << ")";
                    else if (end.x() == x && end.y() == y)
                        mapfile << "T (" << x << ", " << y << ")";
                    else if (cell[x][y].isWalkable())
                        mapfile << " ";
                    else
                        mapfile << "|";
                }
            }

            mapfile << "\n";
        }

        mapfile.close();
#endif
    }
    std::cout << "total time: " << total_time << std::endl;

//  start_time = std::chrono::high_resolution_clock::now();
//  astar.setHeuristic(&AStar::Heuristic::octagonal);
//  astar.navigate(start, end);
//  finish_time = std::chrono::high_resolution_clock::now();
//  elapsed = finish_time - start_time;
//  printf("Octogonal: %.2fs\n", elapsed.count());

    //BOOST_ASSERT(path->size() > 1);
}

References cell, check_collision(), Coordinates< MAX_COORDINATES >::is_within_range(), Horizon::Zone::AStar::Heuristic::manhattan(), MAP_HEIGHT, MAP_WIDTH, MAX_VIEW_RANGE, prontera, Horizon::Zone::AStar::Generator::setHeuristic(), Coordinates< MAX_COORDINATES >::x(), and Coordinates< MAX_COORDINATES >::y().

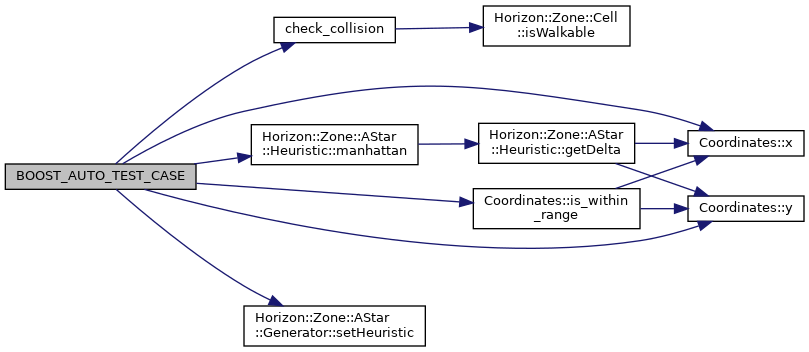

Here is the call graph for this function:

check_collision()

bool check_collision	(	int16_t	x,
		int16_t	y
	)

{
    if (x < 0 || y < 0 ||
        x >= MAP_WIDTH || y >= MAP_HEIGHT)
        return true;

    return cell[x][y].isWalkable() ? false : true;
}

References cell, Horizon::Zone::Cell::isWalkable(), MAP_HEIGHT, and MAP_WIDTH.

Referenced by BOOST_AUTO_TEST_CASE().

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

cell

Cell cell[MAP_WIDTH][MAP_HEIGHT]

Referenced by BOOST_AUTO_TEST_CASE(), check_collision(), Horizon::Zone::Unit::execute_skill_in_cell(), and CellCheckPredicate::operator()().
