GRF Class Reference

#include <GRF.hpp>

Public Member Functions
	GRF ()
grf_load_result_type	load ()
void	extractAllFiles ()
void	extractFile (std::string file_name, std::string output_path, clock_t begin_time)
std::pair< grf_read_error_type, uint8_t * >	read (const char *in_name, int *size)
void	decode (unsigned char *buf, size_t len, char entry_type, int entry_len)
	Decodes grf data. More...
void	decodeFull (unsigned char *buf, size_t len, int cycle)
void	decodeHeader (unsigned char *buf, size_t len)
void	decodeShuffledBytes (BIT64 *src)
	Substitutes some specific values for others, leaves rest intact. More...
uint8_t	substituteObfuscatedByte (uint8_t in)
	Substitutes some specific values for others, leaves rest intact. More...
uint8_t	get_id ()
void	set_id (uint8_t id)
const boost::filesystem::path &	getGRFPath () const
void	setGRFPath (std::string const &path)
std::size_t	getGRFSize () const
void	setGRFSize (std::size_t const &size)
int	getGRFVersion () const
void	setGRFVersion (int version)
int	getTotalFiles () const
void	setTotalFiles (int total)
FileMapType &	getFileMap ()
FileErrorMapType &	getFileErrorMap ()

Private Types
typedef std::unordered_map< std::string, std::shared_ptr< DataFile > >	FileMapType
typedef std::unordered_map< std::string, grf_file_error_type >	FileErrorMapType

Private Attributes
int	_id
boost::filesystem::path	_path
std::size_t	_grf_size
int	_grf_version
int	_total_files
FileMapType	_file_map
FileErrorMapType	_file_error_map

Member Typedef Documentation

FileErrorMapType

typedef std::unordered_map<std::string, grf_file_error_type> GRF::FileErrorMapType

private

FileMapType

typedef std::unordered_map<std::string, std::shared_ptr<DataFile> > GRF::FileMapType

private

Constructor & Destructor Documentation

GRF()

GRF::GRF

(

)

{
    //
}

Member Function Documentation

decode()

void GRF::decode	(	unsigned char *	buf,
		size_t	len,
		char	entry_type,
		int	entry_len
	)

Decodes grf data.

Parameters

buf	data to decode (in-place)
len	length of the data
entry_type	flags associated with the data
entry_len	true (unaligned) length of the data

{
    if (entry_type & DATAFILE_TYPE_DES_MIXED) { // fully encrypted
        int digits;
        int cycle;
        int i;

        // compute number of digits of the entry length
        digits = 1;
        for( i = 10; i <= entry_len; i *= 10 )
            ++digits;

        // choose size of gap between two encrypted blocks
        // digits:  0  1  2  3  4  5  6  7  8  9 ...
        //  cycle:  1  1  1  4  5 14 15 22 23 24 ...
        cycle = ( digits < 3 ) ? 1
                : ( digits < 5 ) ? digits + 1
                    : ( digits < 7 ) ? digits + 9
                        : digits + 15;

        decodeFull(buf, len, cycle);
    } else if (entry_type & DATAFILE_TYPE_DES_HEADER) { // header encrypted
        decodeHeader(buf, len);
    }
}

References DATAFILE_TYPE_DES_HEADER, DATAFILE_TYPE_DES_MIXED, decodeFull(), and decodeHeader().

Referenced by read().

Here is the call graph for this function:

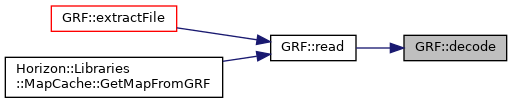

Here is the caller graph for this function:

decodeFull()

void GRF::decodeFull	(	unsigned char *	buf,
		size_t	len,
		int	cycle
	)

{
    BIT64 *p = (BIT64 *)buf;
    size_t nblocks = len / sizeof(BIT64);
    int dcycle, scycle;
    size_t i, j;

    DES des;

    // first 20 blocks are all des-encrypted
    for (i = 0; i < 20 && i < nblocks; ++i)
        des.decryptBlock(&p[i]);

    // after that only one of every 'dcycle' blocks is des-encrypted
    dcycle = cycle;

    // and one of every 'scycle' plaintext blocks is shuffled (starting from the 0th but skipping the 0th)
    scycle = 7;

    // so decrypt/de-shuffle periodically
    j = -1; // 0, adjusted to fit the ++j step
    for (i = 20; i < nblocks; ++i) {
        if (i % dcycle == 0) { // decrypt block
            des.decryptBlock(&p[i]);
            continue;
        }

        ++j;

        if (j % scycle == 0 && j != 0) { // de-shuffle block
            decodeShuffledBytes(&p[i]);
            continue;
        }
        // plaintext, do nothing.
    }
}

References decodeShuffledBytes(), and DES::decryptBlock().

Referenced by decode().

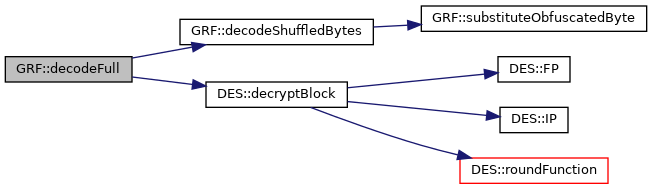

Here is the call graph for this function:

Here is the caller graph for this function:

decodeHeader()

void GRF::decodeHeader	(	unsigned char *	buf,
		size_t	len
	)

{
    BIT64* p = (BIT64 *) buf;
    size_t nblocks = len / sizeof(BIT64);
    size_t i;

    DES *des = new DES();

    // first 20 blocks are all des-encrypted
    for (i = 0; i < 20 && i < nblocks; ++i)
        des->decryptBlock(&p[i]);

    // the rest is plaintext, done.
}

References DES::decryptBlock().

Referenced by decode().

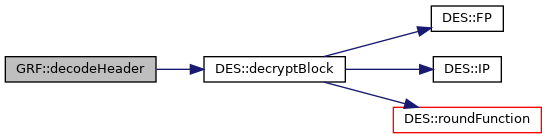

Here is the call graph for this function:

Here is the caller graph for this function:

decodeShuffledBytes()

void GRF::decodeShuffledBytes

(

BIT64 *

src

)

Substitutes some specific values for others, leaves rest intact.

Obfuscation. NOTE: Operation is symmetric (calling it twice gives back the original input).

Parameters

[in|out]

src source to be decoded.

{
    BIT64 out;

    out.b[0] = src->b[3];
    out.b[1] = src->b[4];
    out.b[2] = src->b[6];
    out.b[3] = src->b[0];
    out.b[4] = src->b[1];
    out.b[5] = src->b[2];
    out.b[6] = src->b[5];
    out.b[7] = substituteObfuscatedByte(src->b[7]);

    *src = out;
}

References BIT64::b, and substituteObfuscatedByte().

Referenced by decodeFull().

Here is the call graph for this function:

Here is the caller graph for this function:

extractAllFiles()

void GRF::extractAllFiles

(

)

{
    const clock_t begin_time = clock();

    int i = 0;
    for (auto &it : getFileMap()) {
        extractFile(it.second->file_name, ".", begin_time);
        i++;
    }
}

References extractFile(), and getFileMap().

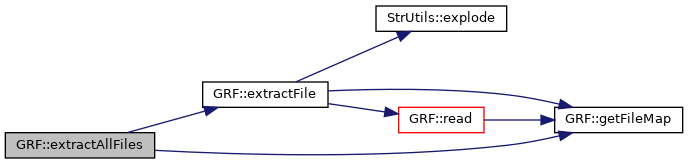

Here is the call graph for this function:

extractFile()

void GRF::extractFile	(	std::string	file_name,
		std::string	output_path,
		clock_t	begin_time
	)

{
    auto elem = getFileMap().find(file_name);

    if (elem == getFileMap().end()) {
        return;
    }

    //std::cout << "File '" << elem->first << "' found. Size: " << elem->second->original_size << std::endl;

    std::string utf8_file_path = boost::locale::conv::to_utf<char>(file_name, "Latin1");

    std::vector<std::string> dirs = StrUtils::explode(utf8_file_path, '\\');

    std::string extracted_file_name = (dirs.end() - 1)->c_str();

    utf8_file_path = utf8_file_path.substr(0, std::strstr(utf8_file_path.c_str(), extracted_file_name.c_str()) - utf8_file_path.c_str());

    std::replace(utf8_file_path.begin(), utf8_file_path.end(), '\\', '/');

    try {
        boost::filesystem::path path = utf8_file_path;
        if (!boost::filesystem::is_directory(path))
            boost::filesystem::create_directories(path);
    } catch (boost::filesystem::filesystem_error &e) {
        std::cerr << e.what() << std::endl;
        return;
    }

    FILE *buf = std::fopen(utf8_file_path.append(extracted_file_name).c_str(), "w");

    if (buf == nullptr) {
        std::cout << "Extraction failed." << std::endl;
        return;
    }

    std::pair<grf_read_error_type, uint8_t*> grf_file = read(elem->second->file_name, nullptr);

    if (grf_file.second == nullptr) {
        std::cerr << "Failed to extract '" << elem->second->file_name << "'" <<std::endl;
        return;
    }

    std::fwrite(grf_file.second, elem->second->original_size, 1, buf);

    delete[] grf_file.second;

    std::fclose(buf);

    file_count++;

    std::cout << "Extracted (" << file_count << "/" << getFileMap().size() <<  ") '" << file_name << "' "
              <<"(" << elem->second->compressed_size << " -> " << elem->second->original_size <<") "
              << float( clock() - begin_time ) /  CLOCKS_PER_SEC << "s."  << std::endl;
}

References StrUtils::explode(), file_count, getFileMap(), and read().

Referenced by extractAllFiles().

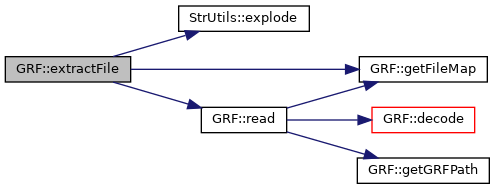

Here is the call graph for this function:

Here is the caller graph for this function:

get_id()

uint8_t GRF::get_id ( )

inline

{ return _id; }

References _id.

getFileErrorMap()

FileErrorMapType & GRF::getFileErrorMap ( )

inline

{ return _file_error_map; }

References _file_error_map.

Referenced by load().

Here is the caller graph for this function:

getFileMap()

FileMapType & GRF::getFileMap ( )

inline

{ return _file_map; }

References _file_map.

Referenced by extractAllFiles(), extractFile(), load(), and read().

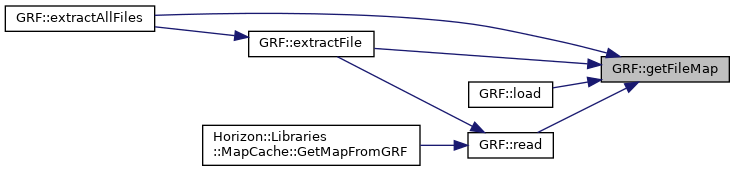

Here is the caller graph for this function:

getGRFPath()

const boost::filesystem::path & GRF::getGRFPath ( ) const

inline

{ return _path; }

References _path.

Referenced by load(), Horizon::Tools::MapCache::ParseGRFLoadResult(), Horizon::Libraries::MapCache::ParseGRFReadResult(), and read().

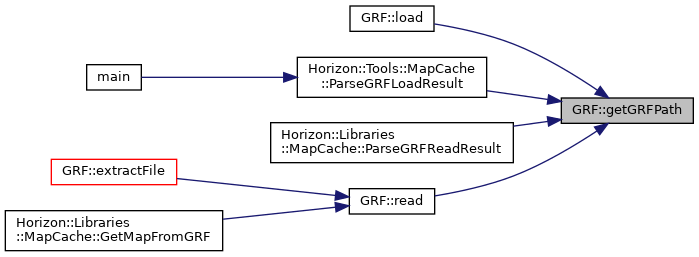

Here is the caller graph for this function:

getGRFSize()

std::size_t GRF::getGRFSize ( ) const

inline

{ return _grf_size; }

References _grf_size.

Referenced by load().

Here is the caller graph for this function:

getGRFVersion()

int GRF::getGRFVersion ( ) const

inline

{ return _grf_version; }

References _grf_version.

Referenced by load(), and Horizon::Tools::MapCache::ParseGRFLoadResult().

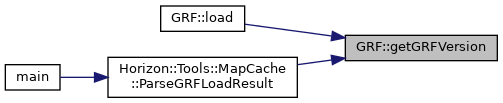

Here is the caller graph for this function:

getTotalFiles()

int GRF::getTotalFiles ( ) const

inline

{ return _total_files; }

References _total_files.

Referenced by load().

Here is the caller graph for this function:

load()

grf_load_result_type GRF::load

(

)

Set the file pointer.

{
    unsigned char grf_header[0x2e];
    std::ifstream grf_ifs(getGRFPath().c_str(), std::ios::in | std::ios::binary);

    if (!grf_ifs.good())
        return GRF_LOAD_PATH_ERROR;

    // Devise the number of bytes.
    grf_ifs.seekg(0, grf_ifs.end);
    _grf_size = grf_ifs.tellg();
    grf_ifs.seekg(0, grf_ifs.beg);

    if (!grf_ifs.read((char *) grf_header, 0x2e))
        return GRF_LOAD_INCOMPLETE_HEADER;

    if (std::strcmp((const char *) grf_header, "Master of Magic") != 0)
        return GRF_LOAD_MAGIC_ERROR;

    if (grf_ifs.seekg(GetLongLong(grf_header + 0x1e), std::ios::cur).fail())
        return GRF_LOAD_FORMAT_ERROR;

    // Set GRF Version.
    setGRFVersion((GetLong(grf_header + 0x2a) >> 8));

    if (getGRFVersion() != 0x02)
        return GRF_LOAD_INVALID_VERSION;

    unsigned char eheader[8];

    if (!grf_ifs.read((char *) eheader, 8))
        return GRF_LOAD_HEADER_READ_ERROR;

    unsigned long compressed_size = GetULong(eheader);  // Read Size
    unsigned long decompressed_size = GetULong(eheader + 4);    // Extend Size

    if (compressed_size > (unsigned long) (getGRFSize() - grf_ifs.tellg()))
        return GRF_LOAD_ILLEGAL_DATA_FORMAT;

    uint8_t *compressed_buf = new uint8_t[compressed_size]; // Get a Read Size
    uint8_t *decompressed_buf = new uint8_t[decompressed_size]; // Get a Extend Size

    if (!grf_ifs.read((char *) compressed_buf, compressed_size)) {
        delete[] decompressed_buf;
        delete[] compressed_buf;
        return GRF_LOAD_READ_ERROR;
    }

    uncompress(decompressed_buf, &decompressed_size, compressed_buf, compressed_size);

    delete[] compressed_buf;

    setTotalFiles((GetLong(grf_header + 0x26) - 7));

    for (int entry = 0, ofs = 0; entry < getTotalFiles(); ++entry) {
        std::shared_ptr<DataFile> data_file = std::make_shared<DataFile>();
        char *fname = (char *) (decompressed_buf + ofs);
        int ofs2 = ofs + (int) strlen(fname) + 1;
        int type = decompressed_buf[ofs2 + 12];

        ofs = ofs2 + 17;

        if (strlen(fname) > sizeof(data_file->file_name) - 1) {
            getFileErrorMap().insert(std::make_pair(fname, GRF_FILE_ERROR_NAME_TOO_LONG));
            continue;
        }

        if (type & DATAFILE_TYPE_FILE) {// file
            data_file->compressed_size = GetLong(decompressed_buf + ofs2 + 0);
            data_file->compressed_aligned_size = GetLong(decompressed_buf + ofs2 + 4);
            data_file->original_size = GetLong(decompressed_buf + ofs2 + 8);
            data_file->entry_position = GetLong(decompressed_buf + ofs2 + 13) + 0x2E;
            data_file->type = type;
            std::memcpy(&data_file->file_name, fname, sizeof(data_file->file_name));
            getFileMap().insert(std::pair<std::string, std::shared_ptr<DataFile>>(data_file->file_name, data_file));
        }
    }

    delete[] decompressed_buf;

    return GRF_LOAD_OK;
}

References _grf_size, DATAFILE_TYPE_FILE, fail, getFileErrorMap(), getFileMap(), getGRFPath(), getGRFSize(), getGRFVersion(), GetLong(), GetLongLong(), getTotalFiles(), GetULong(), GRF_FILE_ERROR_NAME_TOO_LONG, GRF_LOAD_FORMAT_ERROR, GRF_LOAD_HEADER_READ_ERROR, GRF_LOAD_ILLEGAL_DATA_FORMAT, GRF_LOAD_INCOMPLETE_HEADER, GRF_LOAD_INVALID_VERSION, GRF_LOAD_MAGIC_ERROR, GRF_LOAD_OK, GRF_LOAD_PATH_ERROR, GRF_LOAD_READ_ERROR, setGRFVersion(), and setTotalFiles().

Here is the call graph for this function:

read()

std::pair< grf_read_error_type, uint8_t * > GRF::read	(	const char *	in_name,
		int *	size
	)

{
    std::string file_name = in_name;
    std::shared_ptr<DataFile> entry;
    uint8_t *file_buf = nullptr;

    auto it = getFileMap().find(file_name);

    if (it == getFileMap().end())
        return std::make_pair(GRE_NOT_FOUND, nullptr);

    entry = it->second;

    // Archive[GRF] File Read
    if (entry != nullptr) {
        std::ifstream grf_ifs(getGRFPath().c_str(), std::ios::in | std::ios::binary);
        uint8_t *grf_compressed_buf = new uint8_t[entry->compressed_aligned_size];

        grf_ifs.seekg(entry->entry_position, grf_ifs.beg);

        if (!grf_ifs.read((char *) grf_compressed_buf, entry->compressed_aligned_size)) {
            delete[] grf_compressed_buf;
            return std::make_pair(GRE_READ_ERROR, nullptr);
        }

        file_buf = new uint8_t[entry->original_size + 1];  // +1 for resnametable zero-termination

        if (entry->type & DATAFILE_TYPE_FILE) { // file
            uLongf len;
            decode(grf_compressed_buf, entry->compressed_aligned_size, entry->type, entry->compressed_size);
            len = entry->original_size;
            uncompress(file_buf, &len, grf_compressed_buf, entry->compressed_size);
            if (len != (uLong) entry->original_size) {
                delete[] grf_compressed_buf;
                delete[] file_buf;
                return std::make_pair(GRE_DECOMPRESS_SIZE_MISMATCH, nullptr);
            }
        } else { // directory?
            std::memcpy(file_buf, grf_compressed_buf, entry->original_size);
        }

        if (size)
            *size = entry->original_size;

        delete[] grf_compressed_buf;
    }

    return std::make_pair(GRE_OK, file_buf);
}

References DATAFILE_TYPE_FILE, decode(), getFileMap(), getGRFPath(), GRE_DECOMPRESS_SIZE_MISMATCH, GRE_NOT_FOUND, GRE_OK, and GRE_READ_ERROR.

Referenced by extractFile(), and Horizon::Libraries::MapCache::GetMapFromGRF().

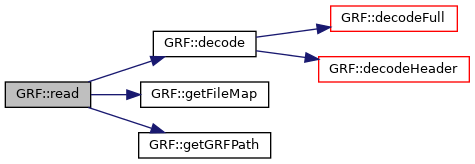

Here is the call graph for this function:

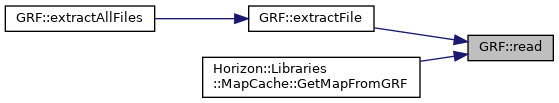

Here is the caller graph for this function:

set_id()

void GRF::set_id ( uint8_t  id )

inline

{ _id = id; }

References _id.

Referenced by Horizon::Libraries::MapCache::ReadGRFListConfig().

Here is the caller graph for this function:

setGRFPath()

void GRF::setGRFPath ( std::string const &  path )

inline

{ _path = path; }

References _path.

Referenced by Horizon::Libraries::MapCache::ReadGRFListConfig().

Here is the caller graph for this function:

setGRFSize()

void GRF::setGRFSize ( std::size_t const &  size )

inline

{ _grf_size = size; }

References _grf_size.

setGRFVersion()

void GRF::setGRFVersion ( int  version )

inline

{ _grf_version = version; }

References _grf_version.

Referenced by load().

Here is the caller graph for this function:

setTotalFiles()

void GRF::setTotalFiles ( int  total )

inline

{ _total_files = total; }

References _total_files.

Referenced by load().

Here is the caller graph for this function:

substituteObfuscatedByte()

uint8_t GRF::substituteObfuscatedByte

(

uint8_t

in

)

Substitutes some specific values for others, leaves rest intact.

Obfuscation. NOTE: Operation is symmetric (calling it twice gives back the original input).

Parameters

[in]

in

the byte needed to be swapped.

Returns

the substitute or itself if none.

{
    uint8_t out;

    switch (in) {
        case 0x00: out = 0x2B; break;
        case 0x2B: out = 0x00; break;
        case 0x6C: out = 0x80; break;
        case 0x01: out = 0x68; break;
        case 0x68: out = 0x01; break;
        case 0x48: out = 0x77; break;
        case 0x60: out = 0xFF; break;
        case 0x77: out = 0x48; break;
        case 0xB9: out = 0xC0; break;
        case 0xC0: out = 0xB9; break;
        case 0xFE: out = 0xEB; break;
        case 0xEB: out = 0xFE; break;
        case 0x80: out = 0x6C; break;
        case 0xFF: out = 0x60; break;
        default:   out = in;   break;
    }

    return out;
}

Referenced by decodeShuffledBytes().

Here is the caller graph for this function:

Member Data Documentation

_file_error_map

FileErrorMapType GRF::_file_error_map

private

Referenced by getFileErrorMap().

_file_map

FileMapType GRF::_file_map

private

Referenced by getFileMap().

_grf_size

std::size_t GRF::_grf_size

private

Referenced by getGRFSize(), load(), and setGRFSize().

_grf_version

int GRF::_grf_version

private

Referenced by getGRFVersion(), and setGRFVersion().

_id

int GRF::_id

private

Referenced by get_id(), and set_id().

_path

boost::filesystem::path GRF::_path

private

Referenced by getGRFPath(), and setGRFPath().

_total_files

int GRF::_total_files

private

Referenced by getTotalFiles(), and setTotalFiles().

---

The documentation for this class was generated from the following files:

• src/Libraries/GRF/GRF.hpp
• src/Libraries/GRF/GRF.cpp
