Horizon::Structures::LinkedList::Element Class Reference

This class is used to manage a linked list of Elements. It is not intended to be used directly. It is used as a base class for other classes that need to manage a linked list. The Head class is a friend of this class to allow it to access the private members of this class. More...

#include <Element.hpp>

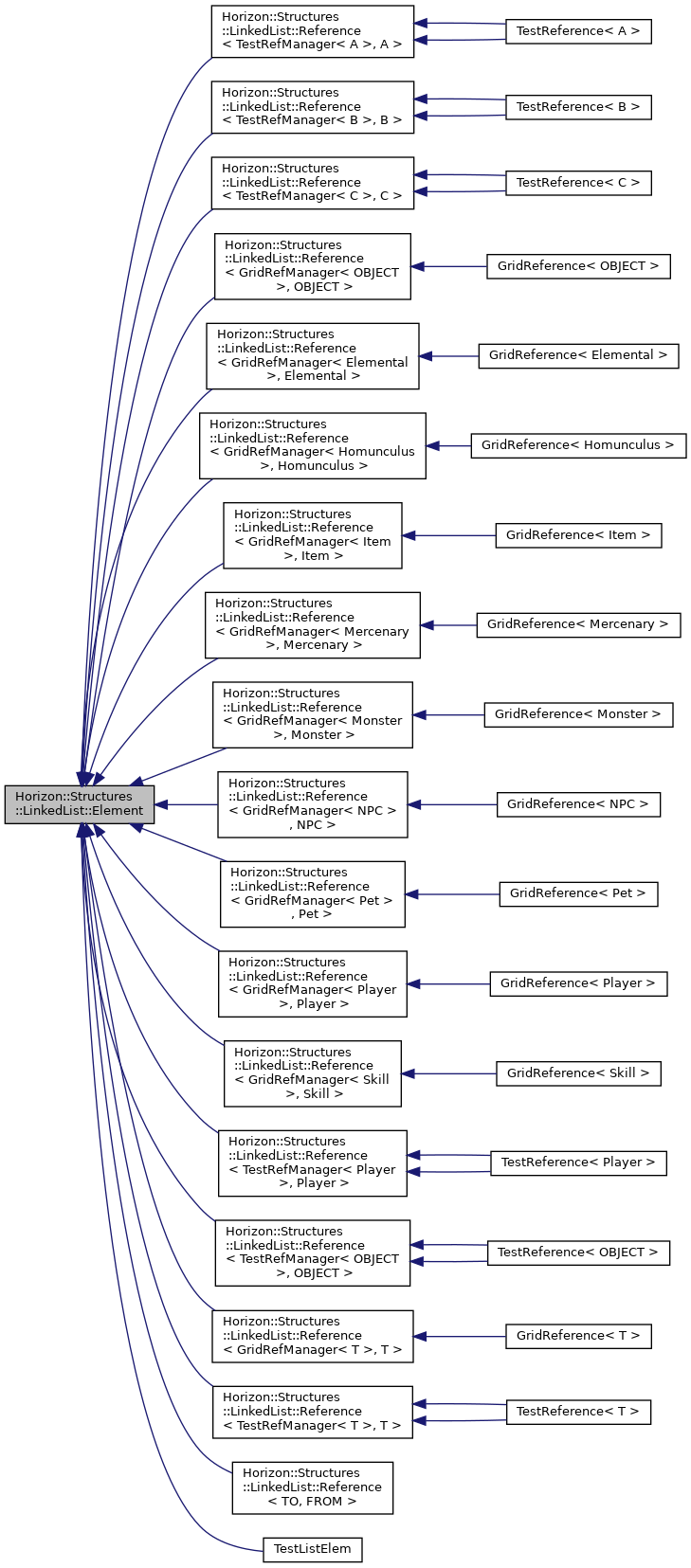

Inheritance diagram for Horizon::Structures::LinkedList::Element:

Collaboration diagram for Horizon::Structures::LinkedList::Element:

Public Member Functions
	Element ()
bool	has_next () const
	Returns true if this Element has a next Element in the list. More...
bool	has_prev () const
	Returns true if this Element has a previous Element in the list. More...
bool	is_in_list () const
	Returns true if this Element is in a list. More...
Element *	next ()
	Returns the next Element in the list. More...
Element const *	next () const
Element *	prev ()
	Returns the previous Element in the list. More...
Element const *	prev () const
Element *	nocheck_next ()
	Returns the next Element in the list without checking if it exists. More...
Element const *	nocheck_next () const
Element *	nocheck_prev ()
	Returns the previous Element in the list without checking if it exists. More...
Element const *	nocheck_prev () const
void	delink ()
	Removes this Element from the list. More...
void	push_before (Element *pElem)
	Pushes this Element before the given Element. More...
void	push_after (Element *pElem)
	Pushes this Element after the given Element. More...

Protected Member Functions
	~Element ()

Private Member Functions
	Element (Element const &)=delete
Element &	operator= (Element const &)=delete

Private Attributes
Element *	_next
Element *	_prev

Friends
class	Head

Detailed Description

This class is used to manage a linked list of Elements. It is not intended to be used directly. It is used as a base class for other classes that need to manage a linked list. The Head class is a friend of this class to allow it to access the private members of this class.

Parameters

_next	The next Element in the list.
_prev	The previous Element in the list.

Constructor & Destructor Documentation

Element() [1/2]

Horizon::Structures::LinkedList::Element::Element ( )

inline

: _next(nullptr), _prev(nullptr) { }

Element() [2/2]

Horizon::Structures::LinkedList::Element::Element ( Element const &  )

privatedelete

~Element()

Horizon::Structures::LinkedList::Element::~Element ( )

inlineprotected

    {
        delink();
    }

References delink().

Here is the call graph for this function:

Member Function Documentation

delink()

void Horizon::Structures::LinkedList::Element::delink ( )

inline

Removes this Element from the list.

    {
        if (!is_in_list())
            return;

        _next->_prev = _prev;
        _prev->_next = _next;
        _next = nullptr;
        _prev = nullptr;
    }

References _next, _prev, and is_in_list().

Referenced by Horizon::Structures::LinkedList::Reference< TO, FROM >::invalidate(), Horizon::Structures::LinkedList::Reference< TO, FROM >::remove(), and ~Element().

Here is the call graph for this function:

Here is the caller graph for this function:

has_next()

bool Horizon::Structures::LinkedList::Element::has_next ( ) const

inline

Returns true if this Element has a next Element in the list.

{ return (_next && _next->_next != nullptr); }

References _next.

Referenced by next().

Here is the caller graph for this function:

has_prev()

bool Horizon::Structures::LinkedList::Element::has_prev ( ) const

inline

Returns true if this Element has a previous Element in the list.

{ return (_prev && _prev->_prev != nullptr); }

References _prev.

Referenced by prev().

Here is the caller graph for this function:

is_in_list()

bool Horizon::Structures::LinkedList::Element::is_in_list ( ) const

inline

Returns true if this Element is in a list.

{ return (_next != nullptr && _prev != nullptr); }

References _next, and _prev.

Referenced by delink().

Here is the caller graph for this function:

next() [1/2]

Element * Horizon::Structures::LinkedList::Element::next ( )

inline

Returns the next Element in the list.

{ return has_next() ? _next : nullptr; }

References _next, and has_next().

Referenced by BOOST_AUTO_TEST_CASE(), Horizon::Structures::LinkedList::Head::get_size(), and Horizon::Structures::LinkedList::Reference< TO, FROM >::next().

Here is the call graph for this function:

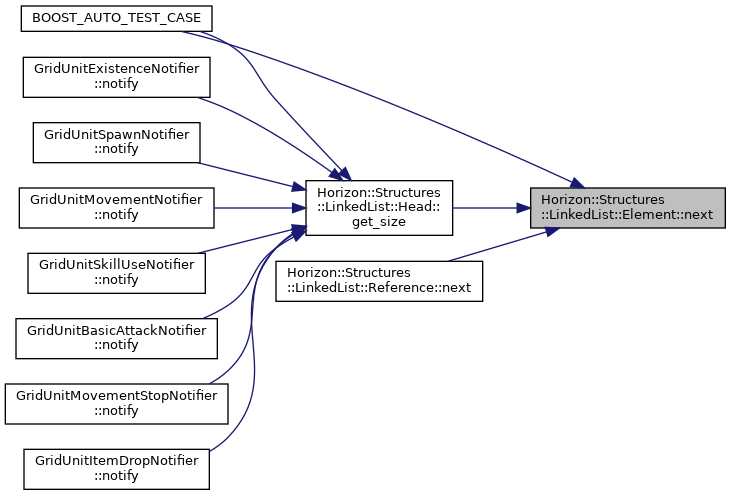

Here is the caller graph for this function:

next() [2/2]

Element const * Horizon::Structures::LinkedList::Element::next ( ) const

inline

{ return has_next() ? _next : nullptr; }

References _next, and has_next().

Here is the call graph for this function:

nocheck_next() [1/2]

Element * Horizon::Structures::LinkedList::Element::nocheck_next ( )

inline

Returns the next Element in the list without checking if it exists.

{ return _next; }

References _next.

Referenced by Horizon::Structures::LinkedList::Reference< TO, FROM >::nocheck_next().

Here is the caller graph for this function:

nocheck_next() [2/2]

Element const * Horizon::Structures::LinkedList::Element::nocheck_next ( ) const

inline

{ return _next; }

References _next.

nocheck_prev() [1/2]

Element * Horizon::Structures::LinkedList::Element::nocheck_prev ( )

inline

Returns the previous Element in the list without checking if it exists.

{ return _prev; }

References _prev.

Referenced by Horizon::Structures::LinkedList::Reference< TO, FROM >::nocheck_prev().

Here is the caller graph for this function:

nocheck_prev() [2/2]

Element const * Horizon::Structures::LinkedList::Element::nocheck_prev ( ) const

inline

{ return _prev; }

References _prev.

operator=()

Element & Horizon::Structures::LinkedList::Element::operator= ( Element const &  )

privatedelete

prev() [1/2]

Element * Horizon::Structures::LinkedList::Element::prev ( )

inline

Returns the previous Element in the list.

{ return has_prev() ? _prev : nullptr; }

References _prev, and has_prev().

Referenced by Horizon::Structures::LinkedList::Reference< TO, FROM >::prev().

Here is the call graph for this function:

Here is the caller graph for this function:

prev() [2/2]

Element const * Horizon::Structures::LinkedList::Element::prev ( ) const

inline

{ return has_prev() ? _prev : nullptr; }

References _prev, and has_prev().

Here is the call graph for this function:

push_after()

void Horizon::Structures::LinkedList::Element::push_after ( Element *  pElem )

inline

Pushes this Element after the given Element.

Parameters

pElem

The Element to push this Element after.

Note

This Element must not be in a list.

    {
        pElem->_prev = this;
        pElem->_next = _next;
        _next->_prev = pElem;
        _next = pElem;
    }

References _next, and _prev.

Referenced by Horizon::Structures::LinkedList::Head::push_front().

Here is the caller graph for this function:

push_before()

void Horizon::Structures::LinkedList::Element::push_before ( Element *  pElem )

inline

Pushes this Element before the given Element.

Parameters

pElem

The Element to push this Element before.

Note

This Element must not be in a list.

    {
        pElem->_next = this;
        pElem->_prev = _prev;
        _prev->_next = pElem;
        _prev = pElem;
    }

References _next, and _prev.

Referenced by Horizon::Structures::LinkedList::Head::push_back().

Here is the caller graph for this function:

Friends And Related Function Documentation

Head

friend class Head

friend

Member Data Documentation

_next

Element* Horizon::Structures::LinkedList::Element::_next

private

Referenced by delink(), Horizon::Structures::LinkedList::Head::first(), has_next(), Horizon::Structures::LinkedList::Head::Head(), Horizon::Structures::LinkedList::Head::is_empty(), is_in_list(), next(), nocheck_next(), push_after(), and push_before().

_prev

Element* Horizon::Structures::LinkedList::Element::_prev

private

Referenced by delink(), has_prev(), Horizon::Structures::LinkedList::Head::Head(), is_in_list(), Horizon::Structures::LinkedList::Head::last(), nocheck_prev(), prev(), push_after(), and push_before().

---

The documentation for this class was generated from the following file:

• src/Core/Structures/LinkedList/Element.hpp
