Horizon::Zone::ZC_NOTIFY_STANDENTRY11 Class Reference

Main object for the aegis packet: ZC_NOTIFY_STANDENTRY11. More...

#include <TransmittedPackets.hpp>

Inheritance diagram for Horizon::Zone::ZC_NOTIFY_STANDENTRY11:

Collaboration diagram for Horizon::Zone::ZC_NOTIFY_STANDENTRY11:

Public Member Functions
	ZC_NOTIFY_STANDENTRY11 (std::shared_ptr< ZoneSession > s)
virtual	~ZC_NOTIFY_STANDENTRY11 ()
void	deliver (unit_viewport_entry entry)
	ZC_NOTIFY_STANDENTRY11. More...
ByteBuffer &	serialize ()
Public Member Functions inherited from Horizon::Base::NetworkPacket< ZoneSession >
	NetworkPacket (uint16_t packet_id, std::shared_ptr< ZoneSession > s)
virtual	~NetworkPacket ()
void	set_packet_id (uint16_t id)
uint16_t	get_packet_id ()
ByteBuffer &	buf ()
std::shared_ptr< ZoneSession >	get_session ()
	Retrieves the session from this handler instance. More...
virtual void	handle (ByteBuffer &&buf)
virtual void	deserialize (ByteBuffer &buf)
void	transmit ()
	Send an Asynchronous packet by queueing a buffer of a particular size to the connected session. More...
void	transmit (std::size_t size)
	Send an Asynchronous packet by queueing a buffer of a particular size to the connected session. More...

Public Attributes
unit_viewport_entry	_entry

Additional Inherited Members
Protected Attributes inherited from Horizon::Base::NetworkPacket< ZoneSession >
ByteBuffer	_buffer
	Buffer storage facility for the packet stream. More...
uint16_t	_packet_id
	ID of the network packet. More...

Detailed Description

Main object for the aegis packet: ZC_NOTIFY_STANDENTRY11.

Constructor & Destructor Documentation

ZC_NOTIFY_STANDENTRY11()

Horizon::Zone::ZC_NOTIFY_STANDENTRY11::ZC_NOTIFY_STANDENTRY11 ( std::shared_ptr< ZoneSession >  s )

inline

    : NetworkPacket<ZoneSession>(ID_ZC_NOTIFY_STANDENTRY11, s)
    {}

~ZC_NOTIFY_STANDENTRY11()

virtual Horizon::Zone::ZC_NOTIFY_STANDENTRY11::~ZC_NOTIFY_STANDENTRY11 ( )

inlinevirtual

{}

Member Function Documentation

deliver()

void ZC_NOTIFY_STANDENTRY11::deliver

(

unit_viewport_entry

entry

)

ZC_NOTIFY_STANDENTRY11.

{
    _entry = entry;
    serialize();
    transmit();
}

References _entry, serialize(), and Horizon::Base::NetworkPacket< ZoneSession >::transmit().

Referenced by Horizon::Zone::ZoneClientInterface::notify_viewport_add_unit().

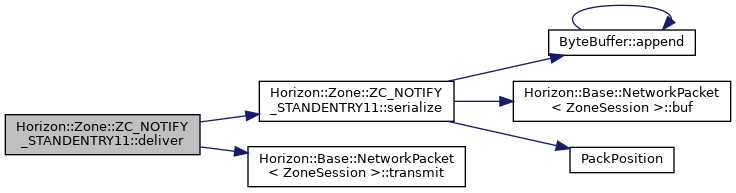

Here is the call graph for this function:

Here is the caller graph for this function:

serialize()

ByteBuffer & ZC_NOTIFY_STANDENTRY11::serialize

(

)

{
    char packed_pos[3]{0};

    buf() << _packet_id;
#if (CLIENT_TYPE == 'M' && PACKET_VERSION >= 20181121) \
|| (CLIENT_TYPE == 'R' && PACKET_VERSION >= 20180704) \
|| (CLIENT_TYPE == 'Z' && PACKET_VERSION >= 20181114)
    buf() << (int16_t) 108;
#else
    buf() << (int16_t) 104;
#endif
    buf() << (int8_t) _entry._unit_type;
    buf() << _entry._guid;
    buf() << _entry.character_id;
    buf() << _entry.speed;
    buf() << _entry.body_state;
    buf() << _entry.health_state;
    buf() << _entry.effect_state;
    buf() << _entry.job_id;
    buf() << _entry.hair_style_id;
    buf() << _entry.weapon_id;
#if (CLIENT_TYPE == 'M' && PACKET_VERSION >= 20181121) \
|| (CLIENT_TYPE == 'R' && PACKET_VERSION >= 20180704) \
|| (CLIENT_TYPE == 'Z' && PACKET_VERSION >= 20181114)
    buf() << _entry.shield_id;
#endif
    buf() << _entry.headgear_bottom_id;
    buf() << _entry.headgear_top_id;
    buf() << _entry.headgear_mid_id;
    buf() << _entry.hair_color_id;
    buf() << _entry.cloth_color_id;
    buf() << (int16_t) _entry.head_direction;
    buf() << _entry.robe_id;
    buf() << _entry.guild_id;
    buf() << _entry.guild_emblem_version;
    buf() << _entry.honor;
    buf() << _entry.virtue;
    buf() << _entry.in_pk_mode;
    buf() << _entry.gender;
    PackPosition((int8_t *) packed_pos, _entry.current_x, _entry.current_y, _entry.current_dir);
    buf().append(packed_pos, sizeof(packed_pos));
    buf() << _entry.x_size;
    buf() << _entry.y_size;
    buf() << (int8_t) _entry.posture;
    buf() << _entry.base_level;
    buf() << _entry.font;
    buf() << _entry.max_hp;
    buf() << _entry.hp;
    buf() << _entry.is_boss;
    buf() << _entry.body_style_id;
    buf().append(_entry.name, sizeof(_entry.name));

    return buf();
}

References _entry, viewport_entry::_guid, Horizon::Base::NetworkPacket< ZoneSession >::_packet_id, viewport_entry::_unit_type, ByteBuffer::append(), unit_viewport_entry::base_level, unit_viewport_entry::body_state, unit_viewport_entry::body_style_id, Horizon::Base::NetworkPacket< ZoneSession >::buf(), unit_viewport_entry::character_id, unit_viewport_entry::cloth_color_id, unit_viewport_entry::current_dir, unit_viewport_entry::current_x, unit_viewport_entry::current_y, unit_viewport_entry::effect_state, unit_viewport_entry::font, unit_viewport_entry::gender, unit_viewport_entry::guild_emblem_version, unit_viewport_entry::guild_id, unit_viewport_entry::hair_color_id, unit_viewport_entry::hair_style_id, unit_viewport_entry::head_direction, unit_viewport_entry::headgear_bottom_id, unit_viewport_entry::headgear_mid_id, unit_viewport_entry::headgear_top_id, unit_viewport_entry::health_state, unit_viewport_entry::honor, unit_viewport_entry::hp, unit_viewport_entry::in_pk_mode, unit_viewport_entry::is_boss, unit_viewport_entry::job_id, unit_viewport_entry::max_hp, unit_viewport_entry::name, PackPosition(), unit_viewport_entry::posture, unit_viewport_entry::robe_id, unit_viewport_entry::shield_id, unit_viewport_entry::speed, unit_viewport_entry::virtue, unit_viewport_entry::weapon_id, unit_viewport_entry::x_size, and unit_viewport_entry::y_size.

Referenced by deliver().

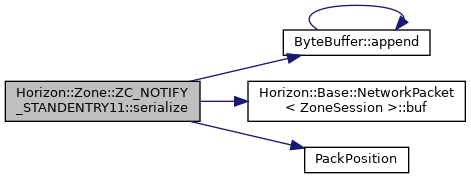

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

_entry

unit_viewport_entry Horizon::Zone::ZC_NOTIFY_STANDENTRY11::_entry

Referenced by deliver(), and serialize().

---

The documentation for this class was generated from the following files:

• src/Server/Zone/Packets/TransmittedPackets.hpp
• src/Server/Zone/Packets/TransmittedPackets.cpp
