#include <SocketMgr.hpp>

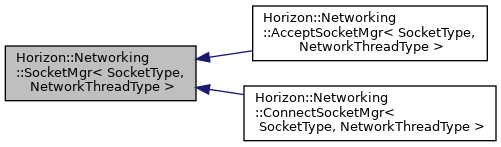

Inheritance diagram for Horizon::Networking::SocketMgr< SocketType, NetworkThreadType >:

Public Member Functions
virtual	~SocketMgr ()

virtual bool	StartNetworkThreads (uint32_t threads=1)
	Main function that deals with network thread initiation. More...

virtual bool	stop_network ()
	Stops network threads and clears the thread map. More...

uint32_t	GetNetworkThreadCount () const
	Get the current size of the thread map. More...

uint32_t	SelectThreadWithMinConnections () const
	Select the thread with the least number of connections, for new socket additions. More...

std::shared_ptr< SocketType >	on_socket_open (std::shared_ptr< tcp::socket > const &socket, uint32_t thread_index)
	On Socket Open / Start Routine. More...

std::pair< std::shared_ptr< tcp::socket >, uint32_t >	get_new_socket ()
	Get a socket from the thread for new server connection. More...

network_thread_map &	get_thread_map ()

Private Types
typedef std::shared_ptr< NetworkThreadType >	NetworkThreadPtr

typedef std::unordered_map< uint32_t, NetworkThreadPtr >	network_thread_map

Private Attributes
uint64_t	_last_socket_id {0}
	ID of the last socket connection. Used for new connection IDs. More...

network_thread_map	_thread_map
	Unordered map of threads with a unique integer as the key. More...

Member Typedef Documentation

◆ network_thread_map

template<class SocketType , class NetworkThreadType >

typedef std::unordered_map<uint32_t, NetworkThreadPtr> Horizon::Networking::SocketMgr< SocketType, NetworkThreadType >::network_thread_map

private

◆ NetworkThreadPtr

template<class SocketType , class NetworkThreadType >

typedef std::shared_ptr<NetworkThreadType> Horizon::Networking::SocketMgr< SocketType, NetworkThreadType >::NetworkThreadPtr

private

Constructor & Destructor Documentation

◆ ~SocketMgr()

template<class SocketType , class NetworkThreadType >

virtual Horizon::Networking::SocketMgr< SocketType, NetworkThreadType >::~SocketMgr ( )

inlinevirtual

    {
        assert(_thread_map.empty());
    }

References Horizon::Networking::SocketMgr< SocketType, NetworkThreadType >::_thread_map.

Member Function Documentation

◆ get_new_socket()

template<class SocketType , class NetworkThreadType >

std::pair< std::shared_ptr< tcp::socket >, uint32_t > Horizon::Networking::SocketMgr< SocketType, NetworkThreadType >::get_new_socket ( )

inline

Get a socket from the thread for new server connection.

Returns: std::pair of the socket and index of the thread it was taken from.

    {
        int min_idx = SelectThreadWithMinConnections();
        return std::make_pair(NetworkThreadPtr(_thread_map.at(min_idx))->get_new_socket(), min_idx);
    }

References Horizon::Networking::SocketMgr< SocketType, NetworkThreadType >::_thread_map, and Horizon::Networking::SocketMgr< SocketType, NetworkThreadType >::SelectThreadWithMinConnections().

Referenced by Horizon::Networking::AcceptSocketMgr< SocketType, NetworkThreadType >::start(), and Horizon::Networking::ConnectSocketMgr< SocketType, NetworkThreadType >::start().

Here is the call graph for this function:

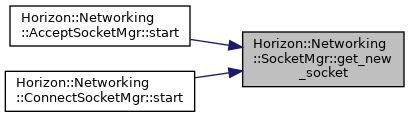

Here is the caller graph for this function:

◆ get_thread_map()

template<class SocketType , class NetworkThreadType >

network_thread_map & Horizon::Networking::SocketMgr< SocketType, NetworkThreadType >::get_thread_map ( )

inline

155{ return _thread_map; }

References Horizon::Networking::SocketMgr< SocketType, NetworkThreadType >::_thread_map.

◆ GetNetworkThreadCount()

template<class SocketType , class NetworkThreadType >

uint32_t Horizon::Networking::SocketMgr< SocketType, NetworkThreadType >::GetNetworkThreadCount ( ) const

inline

Get the current size of the thread map.

Returns: size of the thread.

107{ return (uint32_t) _thread_map.size(); }

References Horizon::Networking::SocketMgr< SocketType, NetworkThreadType >::_thread_map.

◆ on_socket_open()

template<class SocketType , class NetworkThreadType >

std::shared_ptr< SocketType > Horizon::Networking::SocketMgr< SocketType, NetworkThreadType >::on_socket_open	(	std::shared_ptr< tcp::socket > const &	socket,
		uint32_t	thread_index
	)

inline

On Socket Open / Start Routine.

Move the socket ownership from the caller to a new socket and add it to a thread.
Parameters

[in|out] conn_name as the name of the connection.

[in] socket shared pointer.

[in] thread_index index of the thread that the socket is being moved from.

    {
        std::shared_ptr<SocketType> new_socket = std::make_shared<SocketType>(++_last_socket_id, std::move(socket));

        try {
            // Add socket to thread.
            NetworkThreadPtr(_thread_map.at(thread_index))->add_socket(new_socket);
        } catch (boost::system::system_error const &error) {
            HLog(error) << "Networking: Failed to retrieve client's remote address " << error.what();
        }

        return new_socket;
    }

References Horizon::Networking::SocketMgr< SocketType, NetworkThreadType >::_last_socket_id, Horizon::Networking::SocketMgr< SocketType, NetworkThreadType >::_thread_map, and HLog.

Referenced by Horizon::Networking::AcceptSocketMgr< SocketType, NetworkThreadType >::on_socket_open(), and Horizon::Networking::ConnectSocketMgr< SocketType, NetworkThreadType >::on_socket_open().

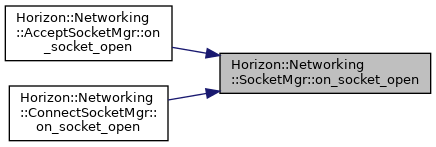

Here is the caller graph for this function:

◆ SelectThreadWithMinConnections()

template<class SocketType , class NetworkThreadType >

uint32_t Horizon::Networking::SocketMgr< SocketType, NetworkThreadType >::SelectThreadWithMinConnections ( ) const

inline

Select the thread with the least number of connections, for new socket additions.

Returns: thread index.

    {
        uint32_t min_idx = 0;

        for (auto &thr : _thread_map)
            if (thr.second->connection_count() < NetworkThreadPtr(_thread_map.at(min_idx))->connection_count())
                min_idx = thr.first;

        return min_idx;
    }

References Horizon::Networking::SocketMgr< SocketType, NetworkThreadType >::_thread_map.

Referenced by Horizon::Networking::SocketMgr< SocketType, NetworkThreadType >::get_new_socket().

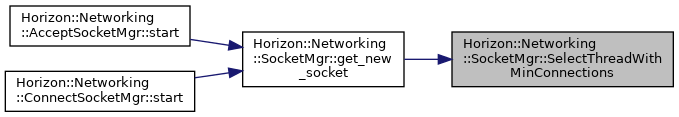

Here is the caller graph for this function:

◆ StartNetworkThreads()

template<class SocketType , class NetworkThreadType >

virtual bool Horizon::Networking::SocketMgr< SocketType, NetworkThreadType >::StartNetworkThreads ( uint32_t threads = 1 )

inlinevirtual

Main function that deals with network thread initiation.

Parameters

[in] threads Number of threads to start.

Returns: true on success, false on failure.

    {
        for (uint32_t i = 0; i < threads; i++) {
            NetworkThreadPtr network_thr = std::make_shared<NetworkThreadType>();

            if (network_thr == nullptr) {
                HLog(error) << "Networking: Error in creating threads, SocketMgr::StartThreadForNetworks.";
                return false;
            }

            network_thr->start(i + 1);

            _thread_map.insert(std::make_pair(i, network_thr));
        }

        return true;
    }

References Horizon::Networking::SocketMgr< SocketType, NetworkThreadType >::_thread_map, and HLog.

Referenced by Horizon::Networking::AcceptSocketMgr< SocketType, NetworkThreadType >::start(), and Horizon::Networking::ConnectSocketMgr< SocketType, NetworkThreadType >::start().

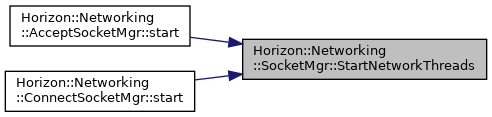

Here is the caller graph for this function:

◆ stop_network()

template<class SocketType , class NetworkThreadType >

virtual bool Horizon::Networking::SocketMgr< SocketType, NetworkThreadType >::stop_network ( )

inlinevirtual

Stops network threads and clears the thread map.

Reimplemented in Horizon::Networking::AcceptSocketMgr< SocketType, NetworkThreadType >, Horizon::Networking::AcceptSocketMgr< AuthSocket, AuthNetworkThread >, Horizon::Networking::AcceptSocketMgr< CharSocket, CharNetworkThread >, Horizon::Networking::AcceptSocketMgr< ZoneSocket, ZoneNetworkThread >, and Horizon::Networking::ConnectSocketMgr< SocketType, NetworkThreadType >.

    {
        /* Clear the thread map. */
        for (auto it = _thread_map.begin(); it != _thread_map.end();) {
            NetworkThreadPtr thr = it->second;
            thr->finalize();
            // Wait for thread to finalize all sockets.
            while (thr->is_finalizing())
            {
                std::this_thread::sleep_for(std::chrono::milliseconds(100));
            };
            thr->join();
            it = _thread_map.erase(it);
        }

        return true;
    }

References Horizon::Networking::SocketMgr< SocketType, NetworkThreadType >::_thread_map.

Referenced by Horizon::Networking::AcceptSocketMgr< SocketType, NetworkThreadType >::stop_network().

Here is the caller graph for this function:

Member Data Documentation

◆ _last_socket_id

template<class SocketType , class NetworkThreadType >

uint64_t Horizon::Networking::SocketMgr< SocketType, NetworkThreadType >::_last_socket_id {0}

private

ID of the last socket connection. Used for new connection IDs.

Referenced by Horizon::Networking::SocketMgr< SocketType, NetworkThreadType >::on_socket_open().

◆ _thread_map

template<class SocketType , class NetworkThreadType >

network_thread_map Horizon::Networking::SocketMgr< SocketType, NetworkThreadType >::_thread_map

private

Unordered map of threads with a unique integer as the key.

The documentation for this class was generated from the following file:

src/Libraries/Networking/SocketMgr.hpp
