Socket Manager for Accepted Sockets. More...

#include <AcceptSocketMgr.hpp>

Inheritance diagram for Horizon::Networking::AcceptSocketMgr< SocketType, NetworkThreadType >:

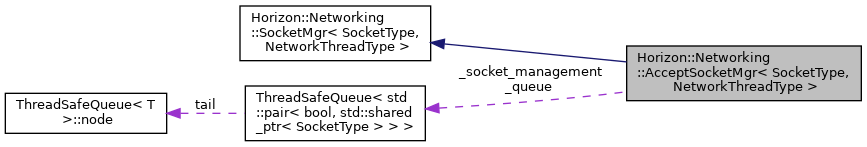

Collaboration diagram for Horizon::Networking::AcceptSocketMgr< SocketType, NetworkThreadType >:

Public Member Functions
virtual bool	start (boost::asio::io_context &io_context, std::string const &listen_ip, uint16_t port, uint32_t threads=1, bool minimal=false)
	Initialize and start accepting connections asynchronously. More...

virtual bool	stop_network () override
	Stop the Acceptor network and clear the client socket map. More...

void	on_socket_open (std::shared_ptr< tcp::socket > const &socket, uint32_t thread_index)
	On Socket Open / Start Event. More...

void	set_socket_for_removal (std::weak_ptr< SocketType > sock)
	Sets a socket for removal on the next session update call. More...

void	set_socket_for_management (std::shared_ptr< SocketType > sock)

void	manage_sockets (uint32_t time)
	Updates every session in the socket map and removes ones in the removal queue. More...

SocketMap &	get_sockets ()

Public Member Functions inherited from Horizon::Networking::SocketMgr< SocketType, NetworkThreadType >
virtual	~SocketMgr ()

virtual bool	StartNetworkThreads (uint32_t threads=1)
	Main function that deals with network thread initiation. More...

virtual bool	stop_network ()
	Stops network threads and clears the thread map. More...

uint32_t	GetNetworkThreadCount () const
	Get the current size of the thread map. More...

uint32_t	SelectThreadWithMinConnections () const
	Select the thread with the least number of connections, for new socket additions. More...

std::shared_ptr< SocketType >	on_socket_open (std::shared_ptr< tcp::socket > const &socket, uint32_t thread_index)
	On Socket Open / Start Routine. More...

std::pair< std::shared_ptr< tcp::socket >, uint32_t >	get_new_socket ()
	Get a socket from the thread for new server connection. More...

network_thread_map &	get_thread_map ()

Private Types
typedef std::map< uint32_t, std::shared_ptr< SocketType > >	SocketMap

typedef SocketMgr< SocketType, NetworkThreadType >	BaseSocketMgr

Private Attributes
std::unique_ptr< AsyncAcceptor >	_acceptor
	unique pointer to an AsyncAcceptor object. More...

SocketMap	_socket_map
	std::map of all connected and handled sockets. More...

ThreadSafeQueue< std::pair< bool, std::shared_ptr< SocketType > > >	_socket_management_queue

std::atomic< bool >	_is_initialized

Detailed Description

template<class SocketType, class NetworkThreadType>
class Horizon::Networking::AcceptSocketMgr< SocketType, NetworkThreadType >

Socket Manager for Accepted Sockets.

Deals with client sockets that were accepted by the server.

Member Typedef Documentation

◆ BaseSocketMgr

template<class SocketType , class NetworkThreadType >

typedef SocketMgr<SocketType, NetworkThreadType> Horizon::Networking::AcceptSocketMgr< SocketType, NetworkThreadType >::BaseSocketMgr

private

◆ SocketMap

template<class SocketType , class NetworkThreadType >

typedef std::map<uint32_t, std::shared_ptr<SocketType> > Horizon::Networking::AcceptSocketMgr< SocketType, NetworkThreadType >::SocketMap

private

Member Function Documentation

◆ get_sockets()

template<class SocketType , class NetworkThreadType >

SocketMap & Horizon::Networking::AcceptSocketMgr< SocketType, NetworkThreadType >::get_sockets ( )

inline

155{ return _socket_map; }

Horizon::Networking::AcceptSocketMgr::_socket_map

SocketMap _socket_map

std::map of all connected and handled sockets.

Definition: AcceptSocketMgr.hpp:159

References Horizon::Networking::AcceptSocketMgr< SocketType, NetworkThreadType >::_socket_map.

◆ manage_sockets()

template<class SocketType , class NetworkThreadType >

void Horizon::Networking::AcceptSocketMgr< SocketType, NetworkThreadType >::manage_sockets ( uint32_t time )

inline

Updates every session in the socket map and removes ones in the removal queue.

Called from the main thread only.
Parameters

[in] diff

    {
        std::shared_ptr<std::pair<bool, std::shared_ptr<SocketType>>> sock_buf;

        while ((sock_buf = _socket_management_queue.try_pop())) {
            bool add = (*sock_buf).first;
            std::shared_ptr<SocketType> socket = (*sock_buf).second;
            auto socket_iter = _socket_map.find(socket->get_socket_id());

            if (socket_iter != _socket_map.end()) {
                if (!add)
                    _socket_map.erase(socket_iter);
            } else if (add) {
                _socket_map.emplace(socket->get_socket_id(), socket);
            }
        }
    }

References Horizon::Networking::AcceptSocketMgr< SocketType, NetworkThreadType >::_socket_management_queue, Horizon::Networking::AcceptSocketMgr< SocketType, NetworkThreadType >::_socket_map, and ThreadSafeQueue< T >::try_pop().

Here is the call graph for this function:

◆ on_socket_open()

template<class SocketType , class NetworkThreadType >

void Horizon::Networking::AcceptSocketMgr< SocketType, NetworkThreadType >::on_socket_open	(	std::shared_ptr< tcp::socket > const &	socket,
		uint32_t	thread_index
	)

inline

On Socket Open / Start Event.

Called as a callback from an Acceptor on successful socket acceptance. Moves the socket ownership from the caller to a network thread.

Called from global I/O thread.
Parameters

[in] socket shared pointer.

[in] thread_index index of the thread that the socket is being moved from.

    {
        std::shared_ptr<SocketType> new_socket = BaseSocketMgr::on_socket_open(std::move(socket), thread_index);

        set_socket_for_management(new_socket);
    }

References Horizon::Networking::SocketMgr< SocketType, NetworkThreadType >::on_socket_open(), and Horizon::Networking::AcceptSocketMgr< SocketType, NetworkThreadType >::set_socket_for_management().

Here is the call graph for this function:

◆ set_socket_for_management()

template<class SocketType , class NetworkThreadType >

void Horizon::Networking::AcceptSocketMgr< SocketType, NetworkThreadType >::set_socket_for_management ( std::shared_ptr< SocketType > sock )

inline

    {
        _socket_management_queue.push(std::make_pair(true, sock));
    }

References Horizon::Networking::AcceptSocketMgr< SocketType, NetworkThreadType >::_socket_management_queue, and ThreadSafeQueue< T >::push().

Referenced by Horizon::Networking::AcceptSocketMgr< SocketType, NetworkThreadType >::on_socket_open().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ set_socket_for_removal()

template<class SocketType , class NetworkThreadType >

void Horizon::Networking::AcceptSocketMgr< SocketType, NetworkThreadType >::set_socket_for_removal ( std::weak_ptr< SocketType > sock )

inline

Sets a socket for removal on the next session update call.

Thread safe.
Parameters

[in] sock socket to be removed.

    {
        _socket_management_queue.push(std::make_pair(false, sock.lock()));
    }

References Horizon::Networking::AcceptSocketMgr< SocketType, NetworkThreadType >::_socket_management_queue, and ThreadSafeQueue< T >::push().

Here is the call graph for this function:

◆ start()

template<class SocketType , class NetworkThreadType >

virtual bool Horizon::Networking::AcceptSocketMgr< SocketType, NetworkThreadType >::start	(	boost::asio::io_context &	io_context,
		std::string const &	listen_ip,
		uint16_t	port,
		uint32_t	threads = `1`,
		bool	minimal = `false`
	)

inlinevirtual

Initialize and start accepting connections asynchronously.

This method also starts the networking threads for accepted sockets.

Parameters

	[in\|out]	&io_context const reference to the io_context object.
	[in\|out]	&listen_ip const reference to the ip_address string for the acceptor to bind on.
[in]	port	port number for the acceptor to bind on.
[in]	threads	number of network acceptor threads to start and run.

Returns: true on success, false on failure.

Reimplemented in Horizon::Zone::ClientSocketMgr, Horizon::Auth::ClientSocketMgr, and Horizon::Char::ClientSocketMgr.

    {
        try {
            _acceptor = std::make_unique<AsyncAcceptor>(io_context, listen_ip, port);
        } catch (boost::system::system_error const &error) {
            HLog(error) << "Exception caught in AcceptSocketMgr::start (" << listen_ip.c_str() << ", " << port << ") " << error.what();
            return false;
        }

        if (!BaseSocketMgr::StartNetworkThreads(threads)) {
            HLog(error) << "AcceptSocketMgr failed to start network threads.";
            return false;
        }

        _acceptor->set_socket_factory(std::bind(&BaseSocketMgr::get_new_socket, this));

        if (minimal == false)
            _acceptor->async_accept_with_callback(std::bind(&AcceptSocketMgr<SocketType, NetworkThreadType>::on_socket_open, this, std::placeholders::_1, std::placeholders::_2));

        HLog(info) << "Networking initialized, listening on " << listen_ip << "@" << port << ".";
        HLog(info) << "Maximum Network Threads: " << threads;

        return true;
    }

References Horizon::Networking::AcceptSocketMgr< SocketType, NetworkThreadType >::_acceptor, Horizon::Networking::SocketMgr< SocketType, NetworkThreadType >::get_new_socket(), HLog, and Horizon::Networking::SocketMgr< SocketType, NetworkThreadType >::StartNetworkThreads().

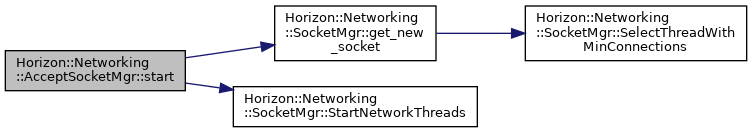

Here is the call graph for this function:

◆ stop_network()

template<class SocketType , class NetworkThreadType >

virtual bool Horizon::Networking::AcceptSocketMgr< SocketType, NetworkThreadType >::stop_network ( )

inlineoverridevirtual

Stop the Acceptor network and clear the client socket map.

Called from the main thread only.

Reimplemented from Horizon::Networking::SocketMgr< SocketType, NetworkThreadType >.

    {
        BaseSocketMgr::stop_network();

        if (_acceptor->is_open()) {
            _acceptor->close();
        }

        _acceptor.reset();
        return true;
    }

References Horizon::Networking::AcceptSocketMgr< SocketType, NetworkThreadType >::_acceptor, and Horizon::Networking::SocketMgr< SocketType, NetworkThreadType >::stop_network().

Here is the call graph for this function:

Member Data Documentation

◆ _acceptor

template<class SocketType , class NetworkThreadType >

std::unique_ptr<AsyncAcceptor> Horizon::Networking::AcceptSocketMgr< SocketType, NetworkThreadType >::_acceptor

private

unique pointer to an AsyncAcceptor object.

Referenced by Horizon::Networking::AcceptSocketMgr< SocketType, NetworkThreadType >::start(), and Horizon::Networking::AcceptSocketMgr< SocketType, NetworkThreadType >::stop_network().

◆ _is_initialized

template<class SocketType , class NetworkThreadType >

std::atomic<bool> Horizon::Networking::AcceptSocketMgr< SocketType, NetworkThreadType >::_is_initialized

private

◆ _socket_management_queue

template<class SocketType , class NetworkThreadType >

ThreadSafeQueue<std::pair<bool, std::shared_ptr<SocketType> > > Horizon::Networking::AcceptSocketMgr< SocketType, NetworkThreadType >::_socket_management_queue

private

Referenced by Horizon::Networking::AcceptSocketMgr< SocketType, NetworkThreadType >::manage_sockets(), Horizon::Networking::AcceptSocketMgr< SocketType, NetworkThreadType >::set_socket_for_management(), and Horizon::Networking::AcceptSocketMgr< SocketType, NetworkThreadType >::set_socket_for_removal().

◆ _socket_map

template<class SocketType , class NetworkThreadType >

SocketMap Horizon::Networking::AcceptSocketMgr< SocketType, NetworkThreadType >::_socket_map

private

std::map of all connected and handled sockets.

Referenced by Horizon::Networking::AcceptSocketMgr< SocketType, NetworkThreadType >::get_sockets(), and Horizon::Networking::AcceptSocketMgr< SocketType, NetworkThreadType >::manage_sockets().

The documentation for this class was generated from the following file:

src/Libraries/Networking/AcceptSocketMgr.hpp
