Horizon::Char::ClientSocketMgr Class Reference

Manager of client sockets and initialization of the packet db *. More...

#include <ClientSocketMgr.hpp>

Inheritance diagram for Horizon::Char::ClientSocketMgr:

Collaboration diagram for Horizon::Char::ClientSocketMgr:

Public Member Functions
bool	start (boost::asio::io_context &io_context, std::string const &listen_ip, uint16_t port, uint32_t threads=1, bool minimal=false) override
	Initialize and start accepting connections asynchronously. More...
bool	stop ()
void	update_sessions (uint64_t time)
Public Member Functions inherited from Horizon::Networking::AcceptSocketMgr< CharSocket, CharNetworkThread >
virtual bool	start (boost::asio::io_context &io_context, std::string const &listen_ip, uint16_t port, uint32_t threads=1, bool minimal=false)
	Initialize and start accepting connections asynchronously. More...
virtual bool	stop_network () override
	Stop the Acceptor network and clear the client socket map. More...
void	on_socket_open (std::shared_ptr< tcp::socket > const &socket, uint32_t thread_index)
	On Socket Open / Start Event. More...
void	set_socket_for_removal (std::weak_ptr< CharSocket > sock)
	Sets a socket for removal on the next session update call. More...
void	set_socket_for_management (std::shared_ptr< CharSocket > sock)
void	manage_sockets (uint32_t time)
	Updates every session in the socket map and removes ones in the removal queue. More...
SocketMap &	get_sockets ()
Public Member Functions inherited from Horizon::Networking::SocketMgr< CharSocket, CharNetworkThread >
virtual	~SocketMgr ()
virtual bool	StartNetworkThreads (uint32_t threads=1)
	Main function that deals with network thread initiation. More...
virtual bool	stop_network ()
	Stops network threads and clears the thread map. More...
uint32_t	GetNetworkThreadCount () const
	Get the current size of the thread map. More...
uint32_t	SelectThreadWithMinConnections () const
	Select the thread with the least number of connections, for new socket additions. More...
std::shared_ptr< CharSocket >	on_socket_open (std::shared_ptr< tcp::socket > const &socket, uint32_t thread_index)
	On Socket Open / Start Routine. More...
std::pair< std::shared_ptr< tcp::socket >, uint32_t >	get_new_socket ()
	Get a socket from the thread for new server connection. More...
network_thread_map &	get_thread_map ()

Static Public Member Functions
static ClientSocketMgr *	Instance ()

Private Types
typedef Horizon::Networking::AcceptSocketMgr< CharSocket, CharNetworkThread >	BaseSocketMgr

Detailed Description

Manager of client sockets and initialization of the packet db *.

Singleton class

Member Typedef Documentation

BaseSocketMgr

typedef Horizon::Networking::AcceptSocketMgr<CharSocket, CharNetworkThread> Horizon::Char::ClientSocketMgr::BaseSocketMgr

private

Member Function Documentation

Instance()

static ClientSocketMgr * Horizon::Char::ClientSocketMgr::Instance ( )

inlinestatic

    {
        static ClientSocketMgr instance;
        return &instance;
    }

start()

bool Char::ClientSocketMgr::start ( boost::asio::io_context &  io_context, std::string const &  listen_ip, uint16_t  port, uint32_t  threads = 1, bool  minimal = false  )

overridevirtual

Initialize and start accepting connections asynchronously.

This method also starts the networking threads for accepted sockets.

Parameters

	[in|out]	&io_context const reference to the io_context object.
	[in|out]	&listen_ip const reference to the ip_address string for the acceptor to bind on.
[in]	port	port number for the acceptor to bind on.
[in]	threads	number of network acceptor threads to start and run.

Returns

true on success, false on failure.

Reimplemented from Horizon::Networking::AcceptSocketMgr< CharSocket, CharNetworkThread >.

{
    if (!BaseSocketMgr::start(io_context, listen_ip, port, threads, minimal))
        return false;
    for (auto i : get_thread_map()) {
        sChar->register_component(Horizon::System::RUNTIME_NETWORKING, (std::dynamic_pointer_cast<CharNetworkThread>(i.second)));
    }
    return true;
}

References Horizon::Networking::SocketMgr< CharSocket, CharNetworkThread >::get_thread_map(), Horizon::System::RUNTIME_NETWORKING, sChar, and Horizon::Networking::AcceptSocketMgr< CharSocket, CharNetworkThread >::start().

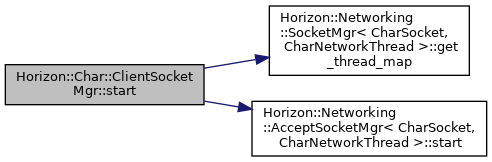

Here is the call graph for this function:

stop()

bool Horizon::Char::ClientSocketMgr::stop ( )

inline

    {
        get_sockets().clear();

        for (auto i = get_thread_map().begin(); i != get_thread_map().end(); i++)
            sChar->deregister_component(Horizon::System::RUNTIME_NETWORKING, (std::static_pointer_cast<CharNetworkThread>(i->second))->get_segment_number());

        if (!BaseSocketMgr::stop_network())
            return false;
        return true;
    }

References Horizon::Networking::AcceptSocketMgr< CharSocket, CharNetworkThread >::get_sockets(), Horizon::Networking::SocketMgr< CharSocket, CharNetworkThread >::get_thread_map(), Horizon::System::RUNTIME_NETWORKING, sChar, and Horizon::Networking::AcceptSocketMgr< CharSocket, CharNetworkThread >::stop_network().

Here is the call graph for this function:

update_sessions()

void Horizon::Char::ClientSocketMgr::update_sessions ( uint64_t  time )

inline

    {
        auto socket_map = get_sockets();

        for (auto s : socket_map) {
            if (s.second->get_session() != nullptr)
                s.second->get_session()->update(time);
        }
    }

References Horizon::Networking::AcceptSocketMgr< CharSocket, CharNetworkThread >::get_sockets().

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• src/Server/Char/SocketMgr/ClientSocketMgr.hpp
• src/Server/Char/SocketMgr/ClientSocketMgr.cpp
